Smooth, reliable and energy-efficient escalators engineered for airports, metro stations, malls, hotels and every space that demands seamless vertical movement.
DBAL escalators are engineered to handle the highest footfall environments in India — from busy metro corridors to luxury malls — while delivering unmatched reliability, safety and energy performance over decades of continuous operation.
Industrial-grade steel truss construction, hardened step chains and reinforced balustrades designed to endure millions of steps over decades without structural fatigue.
Integrated step-gap brushes, comb-plate sensors, emergency stop buttons, handrail speed monitors and automatic lubrication keep every ride safe and compliant.
Variable-speed drives and energy regeneration modules reduce power consumption by 30–45%. Sleep mode automatically slows idle escalators, further cutting running costs.
Centrally lubricated step chains, self-cleaning combs and remote diagnostic monitoring minimise manual intervention and reduce annual maintenance costs significantly.

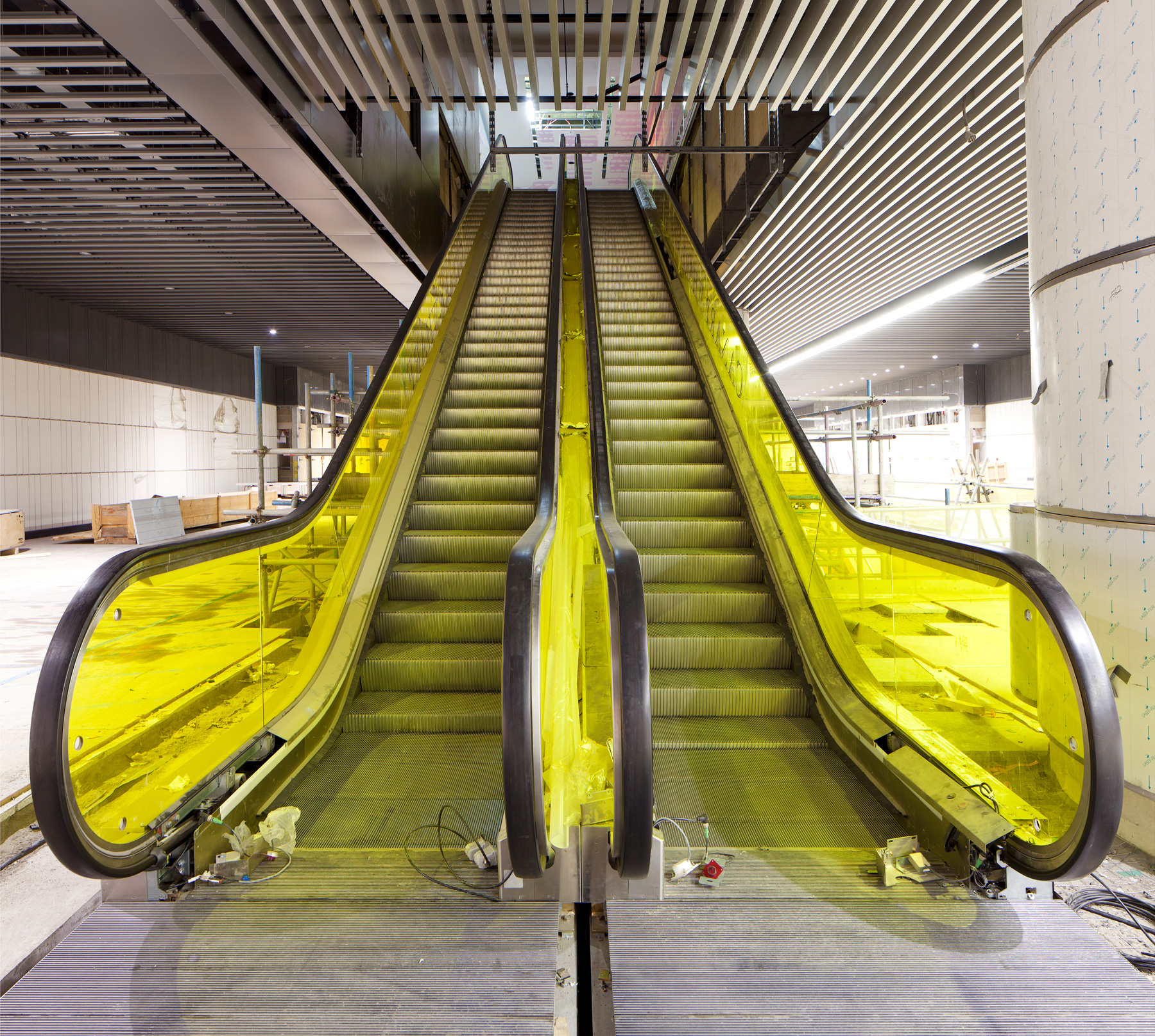

Our commercial heavy-duty escalator range is purpose-engineered for environments that demand maximum throughput, continuous operation and zero compromise on safety. With capacities reaching 9,000 persons per hour, these are the backbone of India's busiest public spaces.
From government infrastructure projects and metro stations to luxury malls and residential complexes, DBAL delivers the right escalator engineered for your specific environment and compliance requirements.
Heavy-duty, outdoor-rated escalators built for airports, railway stations, metro systems and public transit corridors.
Aesthetic, customisable escalators designed for malls, hotels, IT parks, hospitals, educational institutions and residential complexes.
Versatile escalators designed for mixed-use developments, business districts and large-footprint commercial buildings requiring both performance and aesthetics.
DBAL Elevator has delivered and maintained escalators for some of India's most demanding and high-profile infrastructure and commercial projects — where failure is simply not an option.
International & domestic terminals
DMRC, CMRL & state metros
Indian Railways stations
Premium retail destinations
Multi-speciality healthcare
Our product range covers every major application with clearly defined performance parameters. All specifications comply with IS 4591 and relevant international standards.
| Parameter | Standard (Public) | Heavy Duty (Infra) | Premium (Private) |
|---|---|---|---|
| Step Width | 800 mm | 1000 mm | 600 / 800 mm |
| Nominal Speed | 0.5 m/s | 0.5 m/s | 0.4 / 0.5 m/s |
| Inclination Angle | 30° | 30° | 30° / 35° |
| Theoretical Capacity | 6,750 persons/hr | 9,000 persons/hr | 4,000–6,750 persons/hr |
| Rise Height | Up to 6 m | Up to 10 m | Up to 6 m |
| Drive Type | VVF AC Drive | VVF AC + Regenerative | VVF AC Drive |
| Balustrade | Stainless Steel / Glass | Stainless Steel (heavy gauge) | Full Glass / Decorative |
| Outdoor Rating | Indoor | IP54 Outdoor Rated | Indoor |
| Safety Standard | IS 4591 / EN 115 | IS 4591 / EN 115 / DGCA | IS 4591 / EN 115 |
| Remote Monitoring | Optional | Standard | Optional |
